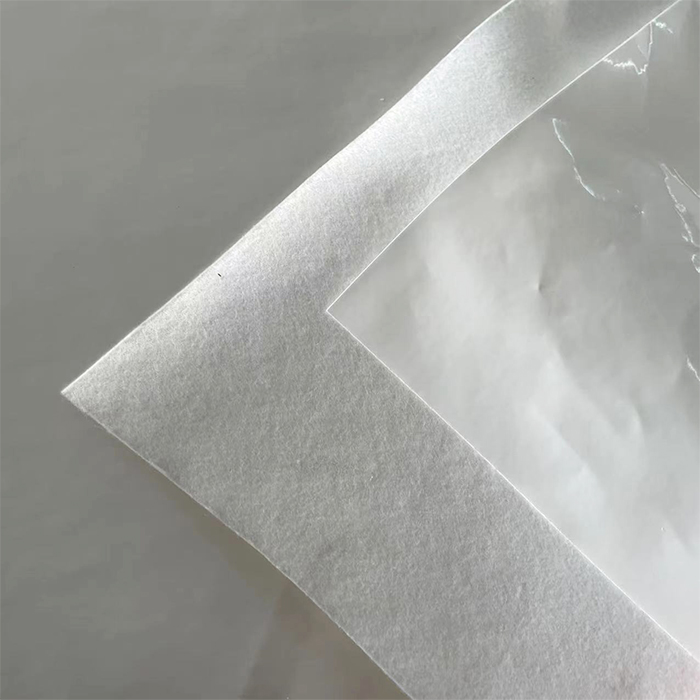

When securing high-value industrial assets for long-haul transit or extended outdoor storage, standard films simply fall short. Our Nonwoven Reinforced Shrink Wrap is meticulously engineered to bridge the gap between flexible coverage and unyielding structural armor. The moment you handle this material, you will notice the distinct tactile difference: the exterior presents a smooth, robust thermoplastic shield designed to deflect harsh weather, while the interior reveals a soft, fibrous PET non-woven layer. This dual-texture construction guarantees that the abrasive friction typical of transit vibrations will never scratch or mar the delicate, painted surfaces of your precision machinery. Applying heat to this composite film transforms it into a tight, drum-like enclosure. You can visibly see and hear the material contracting uniformly, gripping the irregular contours of oversized cargo with absolute precision. By forming an impenetrable, custom-fit barrier, it actively locks out corrosive salt air, driving rain, and abrasive industrial dust. Whether your shipments are crossing oceans or facing months of exposure in open-air facilities, this reinforced wrap acts as a steadfast guardian, drastically reducing the risk of rust, corrosion, and costly surface damage. It is the ultimate protective envelope for organizations demanding flawless delivery and uncompromising asset preservation.
1. Superior Tear Resistance & High Tensile Strength
This nonwoven reinforced shrink wrap delivers exceptional tear resistance and tensile strength, with a tensile strength increase of over 50% compared to standard shrink films. The embedded nonwoven layer prevents tearing and puncturing during long-haul flatbed transportation, ensuring consistent protection for heavy machinery and equipment.
2. Advanced Composite Protective Structure
Nonwoven fabric laminated shrink wrap. Made from high-performance thermoplastic film and durable nonwoven fabric, this composite structure combines flexibility and rigidity. It forms a tight, protective barrier that effectively blocks dust, moisture, rain, and UV exposure, greatly reducing corrosion, rust, and surface damage to industrial goods during transit and storage.
3. Optimal Shrinkage & Secure Wrapping Performance
With a controlled thermal shrinkage rate of 40%–50%, the film wraps tightly around irregularly shaped large cargo without loosening. This stable shrink property ensures full coverage and firm fixation, making it perfectly suited for over-the-road transportation and overseas export shipments.
4. Enhanced Durability for Heavy-Duty Applications
Engineered for heavy-duty use, this reinforced shrink wrap maintains structural integrity under harsh handling and extreme weather conditions. Its long-lasting durability lowers packaging replacement frequency, providing a cost-effective and reliable solution for industrial equipment and large-scale cargo protection.
5. Wide Compatibility & Versatile Industrial Use
Suitable for flatbed trucks, container shipping, and outdoor storage, this nonwoven reinforced shrink wrap adapts to various industrial scenarios. It delivers reliable protection for machinery, building materials, and oversized equipment, meeting the strict packaging demands of global logistics and export operations.
| Heat Shrink Wrap | |||
| Item | Width | Length | Thickness |
| Standard Heat Shrink Wrap | 20ft, 23ft, 26ft, 33ft, 40ft, 50ft, 60ft or customize | 60ft, 100ft, 150ft, 200ft or customize | 6mil-12mil |
| Flame Retardant Heat Shrink Wrap | 20ft, 23ft, 26ft, 33ft, 40ft, 50ft, 60ft or customize | 60ft, 100ft, 150ft, 200ft or customize | 6mil-12mil |
| Reinforced Heat Shrink Wrap | |||
| Item | Width | Length | Thickness |
| Non-Woven Reincorced Shrink Wrap | 3.5ft-9.5ft | 100ft-500ft | 7mil-10mil |
| Grid Reinforced Shrink wrap | 3.5ft-9.5ft | 100ft-500ft | 7mil-12mil |
| Custom Fit Packaging | |||
| Size | Shape | Application | Material |
| Design By Requirements | Regular or Inregular Shape | Modular House, Boat, Machinary, Palletized Goods, etc. | Shrink film/ Reinforced Shrink film |
| Commodity: non-woven laminated heat shrink film | ||||
| Main Chemical compositions: | PET non-woven, PE film | |||
| Properties | Direction | Unit | Test method | Result |
| Thickness of film | / | mm | GB/T6673 | 0.25 |
| Non-woven weight | / | gsm | GB/T6672 | 55 |
| Tensile strength | TD | Mpa | GB/T1040 | 35.1 |
| MD | GB/T1040 | 39.1 | ||
| Elongation | TD | Mpa | GB/T1040 | 860.5 |
| MD | GB/T1040 | 850.3 | ||
| Heat Shrink Rate | TD | % | GB/T 16578.1 | 15-30 |
| MD | GB/T 16578.1 | 45-65 | ||
| Tear Propagation | TD | kN/m | GB/T 16578.1 | 163.6 |
| MD | GB/T 16578.1 | 176.6 | ||
| Friction | inside VS inside | kN/m | GB/T 10006 | 0.221 |
| inside VS outside | 0.204 | |||
| UV Shield | Mesterbatch ratio | Shield period | ||
| 2% | 12months | |||
1. Large Flatbed Truck Transportation
It is specially used for long-distance over-the-road flatbed transportation of large goods, tightly wrapping oversized machinery and building materials to resist bumps and scratches, ensuring goods are not damaged during long-haul transportation.
2. Industrial Equipment & Machinery Protection
Suitable for packaging and protecting various industrial machinery, precision equipment and large mechanical parts, preventing moisture, corrosion and dust erosion, and keeping equipment intact during storage and transportation.
3. Overseas Export & Sea Freight Shipping
Ideal for long-distance ocean shipping of export goods, with excellent weather resistance to block seawater moisture and UV rays, adapting to harsh marine environments and protecting goods from damage during transoceanic transportation.
4. Outdoor Storage of Bulk Goods
Applied to outdoor temporary storage of large industrial materials, equipment and construction supplies, forming a full-coverage protective layer to resist rain, snow and wind, avoiding aging and damage of goods in outdoor environments.
5. Oversized Cargo & Irregular Goods Packaging
Perfect for wrapping irregularly shaped oversized cargo, heavy industrial components and architectural components, with good ductility to fit goods perfectly and realize stable and fixed packaging protection.
Pre-Operation Preparation
1. Clean the surface of the goods to remove sharp protrusions, burrs and debris, avoiding piercing the shrink wrap during wrapping. Prepare a heat shrink gun, professional cutting tool and fixing tape for subsequent operation.
Product Wrapping
2. Unroll the nonwoven reinforced shrink wrap, cover it completely on the surface of the goods, reserve enough wrapping margin to ensure full coverage of all parts, and cut off the excess film with a cutting tool.
Film Fixing
3. Use high-temperature resistant fixing tape to seal and fix the overlapping parts of the shrink wrap to prevent displacement and loosening, ensuring the film fits closely with the goods without gaps.
Heat Shrink Treatment
4. Use a heat shrink gun (adjust temperature to 120-150℃) to heat the film evenly from top to bottom, moving the gun continuously to avoid overheating and damaging the film. Stop heating when the film shrinks tightly and fits the goods completely.
Post-Operation Inspection
5. After cooling, check the overall wrapping condition: confirm the film has no cracks, looseness or damage, and ensure the goods are fully wrapped and fixed firmly before transportation or storage.
Selecting the right manufacturer for your industrial packaging is a critical decision that impacts your bottom line and your reputation. We bring decades of specialized expertise to the table, ensuring every roll of film meets uncompromising quality standards.
Direct Manufacturer Advantage: By sourcing directly from our advanced production facilities, you bypass intermediary markups, securing premium packaging materials at highly competitive rates for your large-scale procurement needs.
Uncompromising Quality Control: Every batch of our laminated shrink wrap undergoes rigorous laboratory testing—from tensile strength to UV resistance—guaranteeing consistent, reliable performance in the field.
Scalable Production Capacity: Whether you require a standard order for routine shipments or massive volumes for a major infrastructure project, our robust manufacturing capabilities ensure timely fulfillment without frustrating delays.
Expert Technical Support: We do not merely supply materials; we provide comprehensive guidance. Our team assists with operational best practices, ensuring your facility maximizes the efficiency and protective capabilities of our shrink wrap.
1. Q: What's the difference between this reinforced shrink wrap and standard shrink film?
A: It’s a composite of thermoplastic film and non-woven fabric, with 50% higher tensile & tear strength. It resists punctures and tears better, ideal for heavy-duty, long-distance transport of large/heavy cargo.
2. Q: What thickness and width are available?
A: Standard thickness: 150–300μm; width: 1–3m. Custom sizes are supported to fit machinery, building materials, flatbed loads and oversized export cargo.
3. Q: What heating tools are recommended for shrinking?
A: A heat gun (120–150℃) is preferred; heat tunnels also work. Keep the tool moving evenly to avoid burning. For large loads, use overlapping heating for full shrinkage.
4. Q: How long can it be used outdoors?
A: With UV stabilization, it lasts 3–6 months outdoors, protecting against rain, moisture and corrosion during long sea/land transportation and outdoor storage.
